3 Watt Modular LED

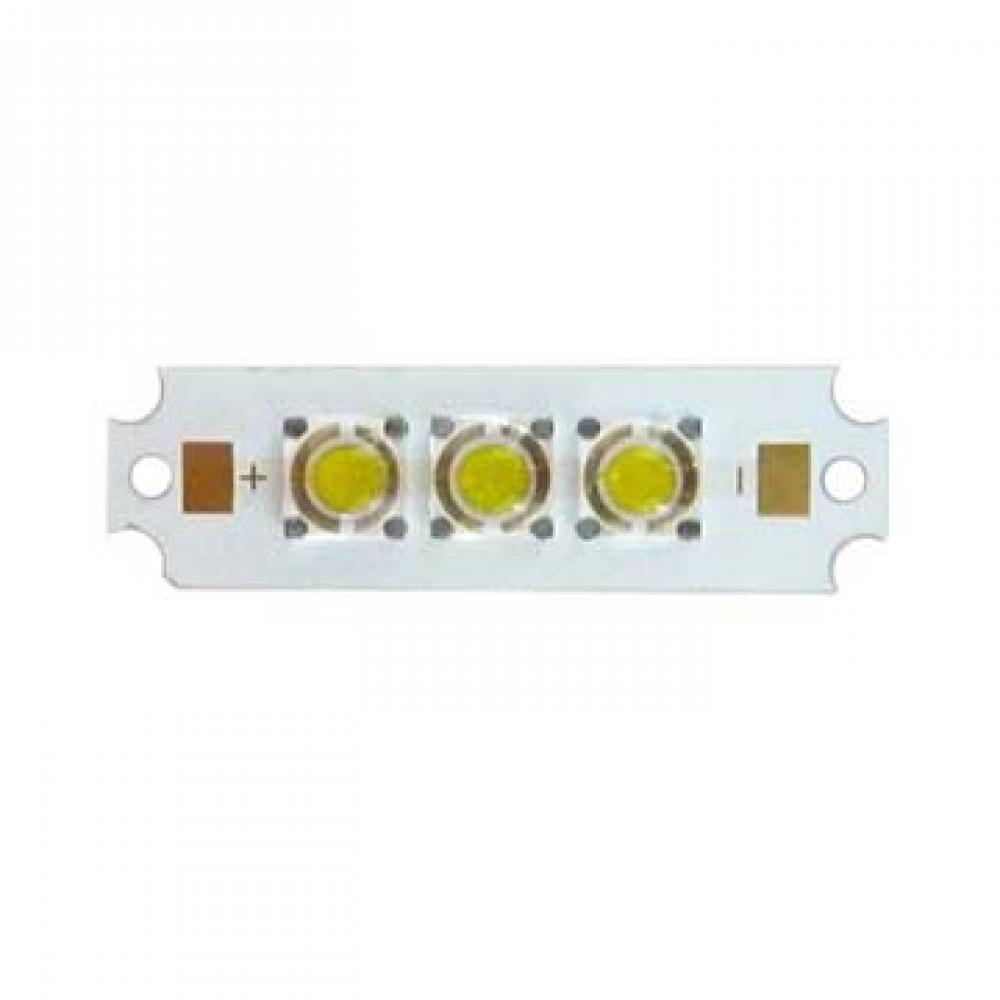

MPCB High Power 3 X 1 Watt Modular LED

Feature:
High brightness
High durability
Excellent efficiency
Optimum performance
Rust proof
Long Life
Low power consumption
Various Viewing angle
Unbreakable

Specification:
LED type: 1 watt high power LED
LED Amount: 3pcs LEDs
Constant Current: 350mA
Forward voltage: 6-12 VDC
Power Consumption: 3.3W
Beam angle: 120
Color: Pure White (3000K-3500K)
Natural White (4000K-4500K)
Warm White (6000K-6500K)
Red (620nm) / Green (520nm) / Blue (460nm)
Luminous flux: Red 100 lm
Green 150 lm
Blue 45 lm
Pure White 240 lm
Natural White 210 lm
Warm White 180lm
Electrical/Optical Characteristics at Ta=25℃
Height: 1.5mm
Length: 35mm
Operating temperature range: -10C till 45C
