3W 43mm 15 LED COB
- FLM69-3W
- Availability: In Stock
- 3W 43mm 15 LED COB
$70.00

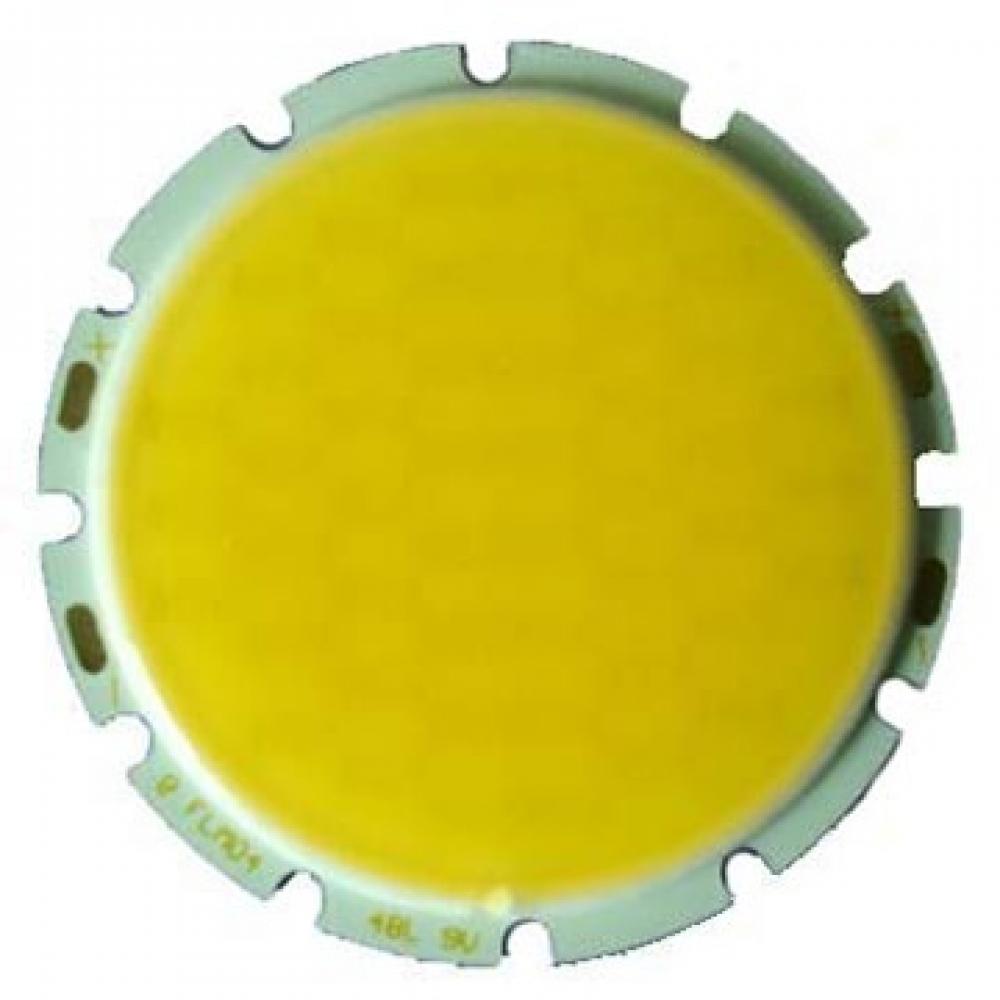

3 Watt 43mm 15 chips COB LED Flat lighting module
Feature:
High brightness
High durability
Excellent efficiency
Optimum performance
Rust proof
Long Life
Low power consumption
Various Viewing angle
Unbreakable
Specification:
LED type: 3 watt 15 chips LED COB
Constant Current: 300mA
Forward voltage: 9-12 VDC
Power Consumption: 3W
Color: Pure White (3000K-3500K)
Natural White (4000K-4500K)
Warm White (6000K-6500K)
Luminous flux: 180-240lm
Electrical/Optical Characteristics at Ta=25℃
Height: 5.8mm
Diameter: 43mm
Light-emitting Area: 38mm
Operating temperature range: -10C till 45C
Feature:
High brightness
High durability
Excellent efficiency
Optimum performance
Rust proof
Long Life
Low power consumption
Various Viewing angle
Unbreakable
Specification:
LED type: 3 watt 15 chips LED COB
Constant Current: 300mA
Forward voltage: 9-12 VDC
Power Consumption: 3W
Color: Pure White (3000K-3500K)
Natural White (4000K-4500K)
Warm White (6000K-6500K)
Luminous flux: 180-240lm
Electrical/Optical Characteristics at Ta=25℃
Height: 5.8mm
Diameter: 43mm
Light-emitting Area: 38mm
Operating temperature range: -10C till 45C
