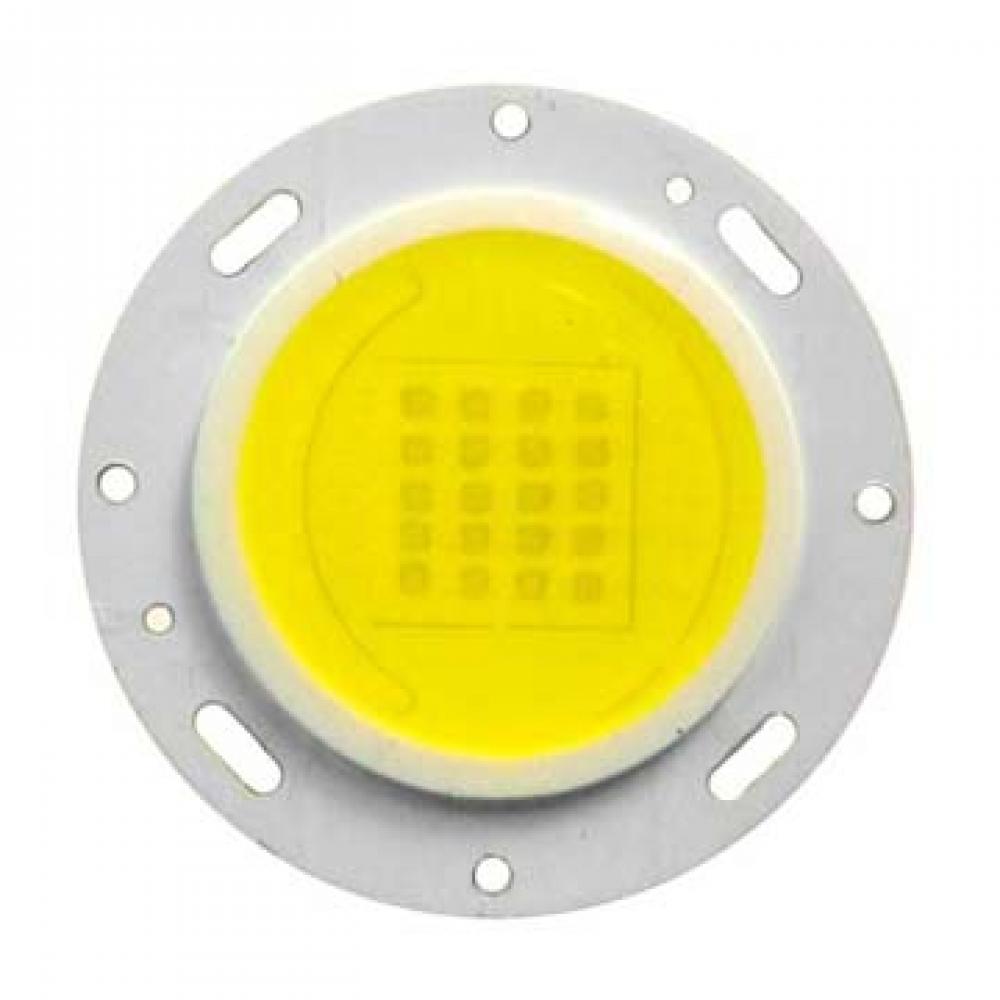

20W COB LED

High Power 20 Watt COB LED Emitter

Feature:
High brightness
High durability
Excellent efficiency
Optimum performance
Rust proof
Long Life
Low power consumption
Various Viewing angle
Unbreakable

Specification:
LED type: 20 watt high power LED emitter
Constant Current: 1200mA
Forward voltage: 10-18 VDC
Power Consumption: 21W
Beam angle: 140°
Color: Pure White (3000K-3500K)
Natural White (4000K-4500K)
Warm White (6000K-6500K)
Red (620nm) / Green (520nm) / Blue (460nm)
Luminous flux: Red 700lm
Green 1200 lm
Blue 400 lm
Pure White 1900 lm
Natural White 1800 lm
Warm White 1700lm
Electrical/Optical Characteristics at Ta=25℃
Height: 1.8mm
Diameter: 32mm
Operating temperature range: -10°C till +45°C
