30W COB LED

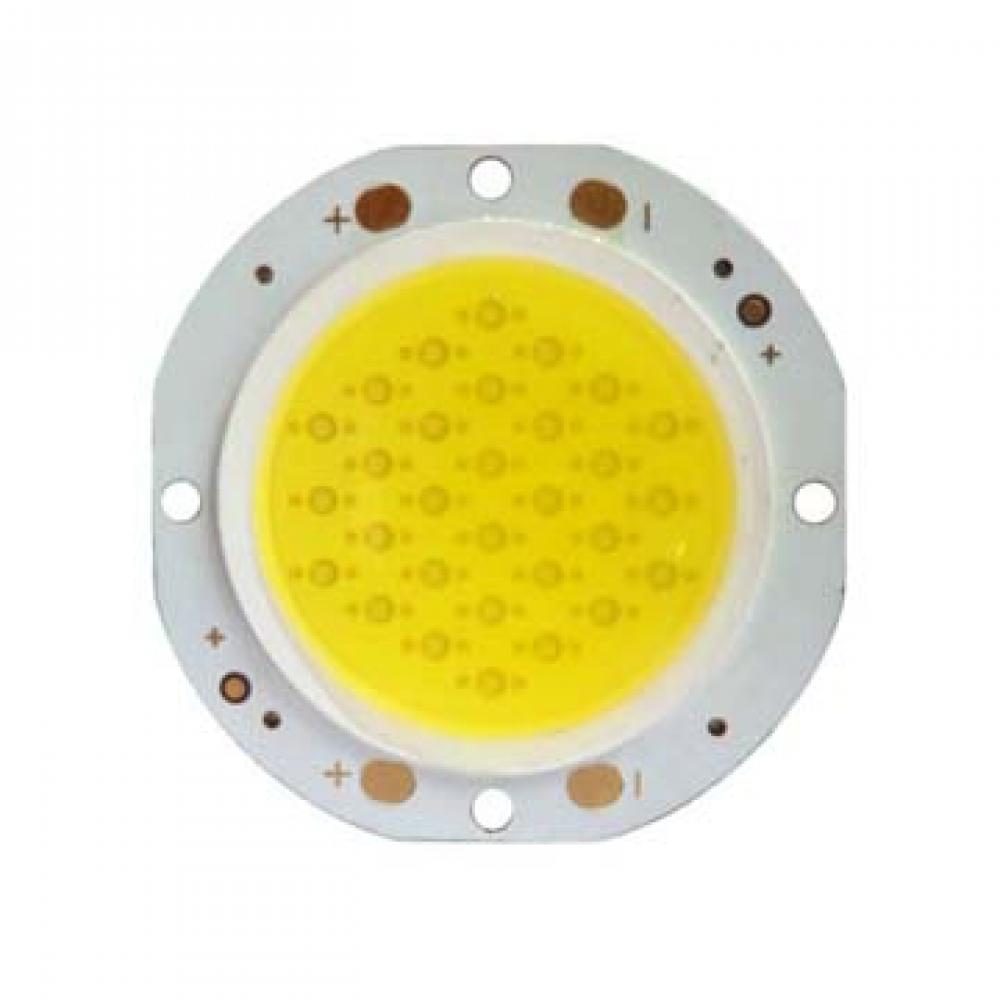

High Power 30 Watt COB LED Emitter

Feature:
High brightness
High durability
Excellent efficiency
Optimum performance
Rust proof
Long Life
Low power consumption
Various Viewing angle
Unbreakable

Specification:
LED type: 30 watt high power LED emitter
Constant Current: 1500mA
Forward voltage: 12-20 VDC
Power Consumption: 32W
Beam angle: 140
Color: Pure White (3000K-3500K)
Natural White (4000K-4500K)
Warm White (6000K-6500K)
Red (620nm) / Green (520nm) / Blue (460nm)
Luminous flux: Red 1000lm
Green 1800 lm
Blue 600 lm
Pure White 2700 lm
Natural White 2600 lm
Warm White 2500lm
Electrical/Optical Characteristics at Ta=25℃
Height: 2mm
Diameter: 49.9mm
Operating temperature range: -10C till 45C
