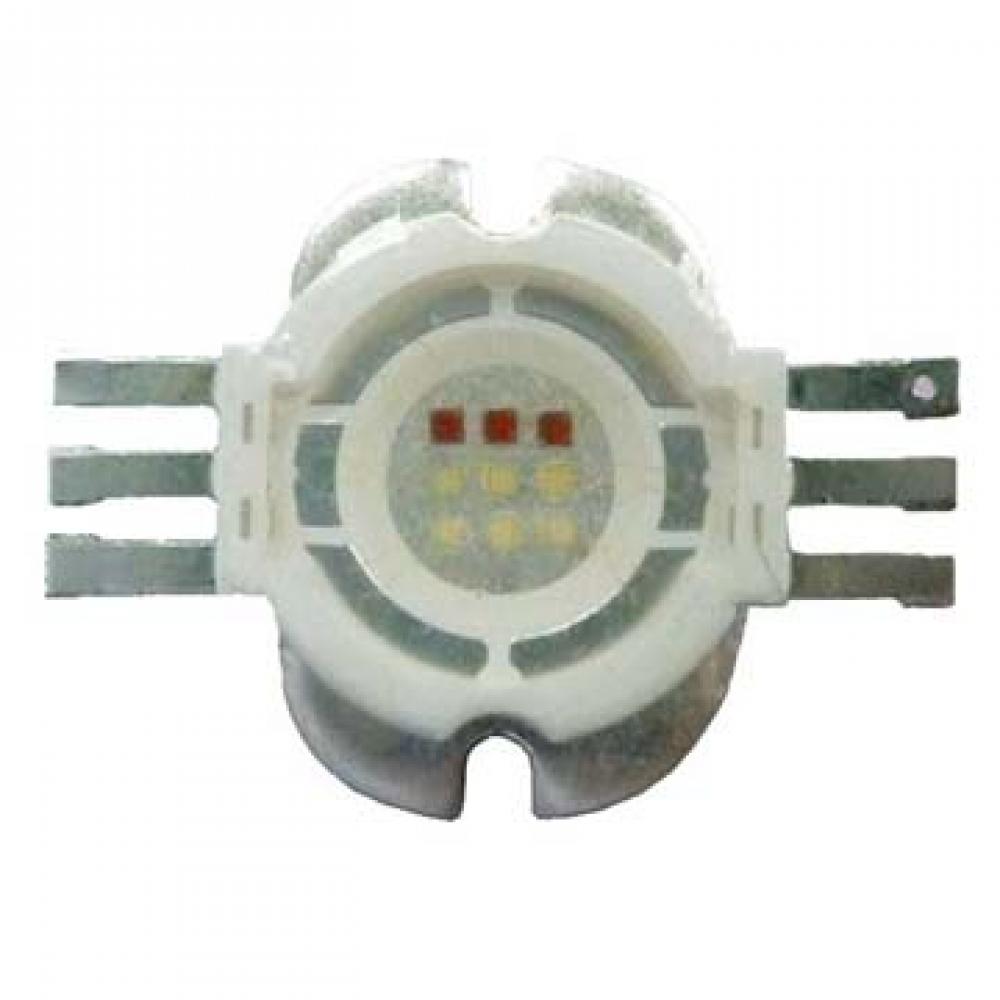

9 Watt 6pin RGB LED
- HP-9W-6pin-29
- Availability: In Stock
- 9 Watt 6pin RGB LED
Feature:
High brightness
High durability
Excellent efficiency
Optimum performance
Rust proof
Long Life
Low power consumption
Various Viewing angle
Unbreakable
Specification:
LED type: 9 watt high power LED
Constant Current: 350mA
Forward Voltage: 4-12V
Power Consumption: 10W
Beam angle: 120
Color: Red (620nm) / Green (520nm) / Blue (460nm)
Luminous flux: Red 70 lm
Green 120 lm
Blue 40 lm
Electrical/Optical Characteristics at Ta=25℃
Height: 5.5mm
Operating temperature range: -10C till 45C
