200mm Arrow & Cross 2in1 Signal

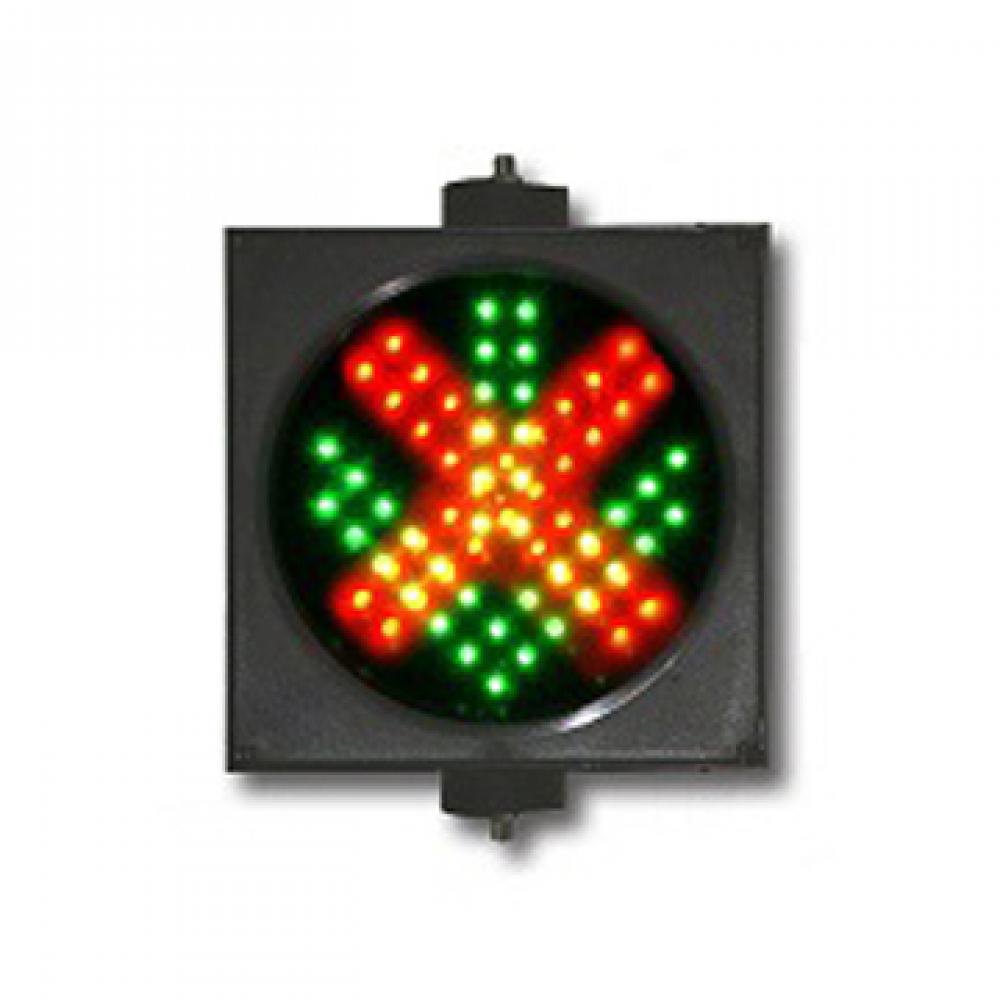

200mm / 8" Red Cross & Green Arrow 2-in-1 LED Traffic Sign Lights

Specifications:

Size: 250mm x 250mm x 110mm
Input Voltage: 85V～264V AC 50Hz/60Hz
Operating Temperature: -40～+80℃
LED quantity:
Red cross: 93 pieces LEDs
Green arrow: 75 pieces LEDs
Beam Angle: 30°Right/Left;10°Alow
Wavelength:
Red: 625 ±5nm
Green: 505 ±2nm
Power consumption:
Red cross: ≤7W
Green arrow: ≤7W
IP rating: IP43
Package Dimension: 940mm x 315mm x 210mm
Volume (m3): 0.062
Quatity: 2 PCS/Carton
Gross Weight: 6.5 Kg

Features:
Esthetic appearance & visibility
High efficiency and high brightness LED Light source, large view angle
More than 70,000 hours lifespan
90% energy saving compared with incandescent
Unique optical lens, superb color uniformity
Multi-ply sealed, water & dust resistant

Applications:
LED traffic light
LED traffic sign
LED traffic modular
LED traffic ball light
LED pedestrian modular
LED countdown timer
Solar traffic light
