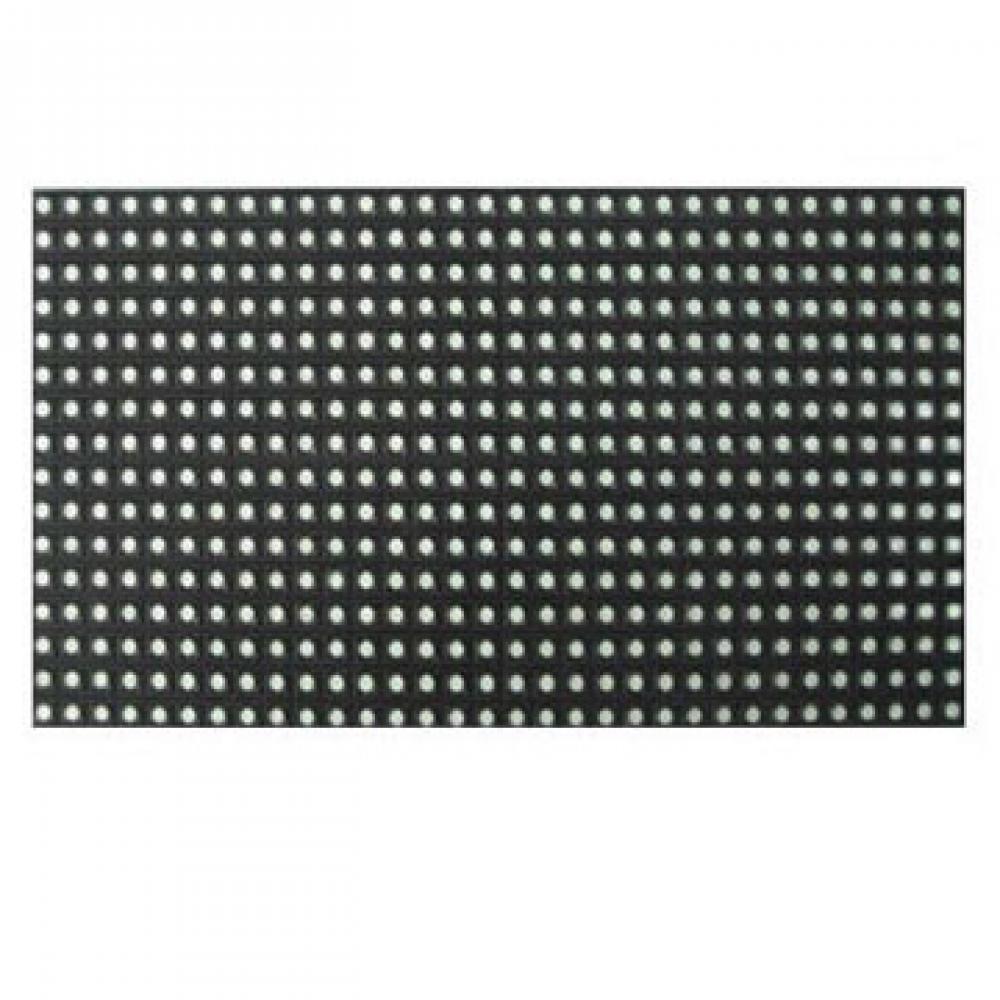

P5mm Indoor LED display Screen

P5mm Indoor LED display is is the best pixel for indoor application so far.

Specification:

Pixel pitch: 5 mm
Pixel Density: 40,000 pixels/m2
LED Type: SMD 3-in-1
Pixels Configuration: 1R1G1B
Module Dimension: (LxH)160*160mm
Module Resolution: (LxH)32*32pixels
Cabinet Dimension: (LxHxW)640*640mm*135mm
Cabinet Resolution: (LxH)128*128pixels
Brightness Density: 2600 cd/m2
Display Color: 68.7 billion
Gray scale: 4096 gray scale in each Red、Green、Blue color
Viewing angle: Horizontal angle: 120 degree; Vertical angle: 120 degree
Drive mode: 1/8
Best Viewing distance: 5m
Average power consumption: 648W/M2
Max power consumption: 1600W/M2
Working Voltage: AC220V15％, 47～64HZ
Refresh Velocity: ≧60 frame/sec
Refresh Rate: ≧300HZ
Effective Control Distance: 100m (KAT5 cable) /1000m or more (Optical fiber)
Signal Input: Composite,S-video,Component,VGA,DVI,HDMI,SDI,HD_SDI,etc
Controlling system: PCTV non-linear editting card DVI display card main controller card optical fiber transmission (Optional)
Effective Control Distance: 100m (KAT5 cable) /1000m or more (Optical fiber)
Lifespan: 100,000 Hours
Ingress Protection: Front IP40, Rear IP30
MTBF (Ave No Faliure Time): 10,000 Hours
Blind Pixels Rate: ≦0.0003
Operation temperature: - 30℃ ～ 60℃
Operation Humidity: 10％ ～ 90％ RH

Features:

Best consistency with signal input, vivid color
Best viewing angle 160 horizontal and 120 vertical
Centralized control management for multi-displays
≤0.5mm surface level up, smooth video
Flexible shape for large area
Easy transport,installation and maintenance
Energy-saving
High luminous efficacy
Modular design
Perfect quality and stability, 24*7 running
Standard cabinet, easy

Application:

PH5 indoor is widely used for meeting room, stage and TV show.
