P20mm Outdoor LED display

P20mm Outdoor LED display is Widely used at public square, shoping mall and sport field for advertising.

Specifications:

Pixel pitch: 20mm
Pixel Density: 2500 pixels / m2
LED Type: LED Dip
Pixel configuration: 2R1G1B

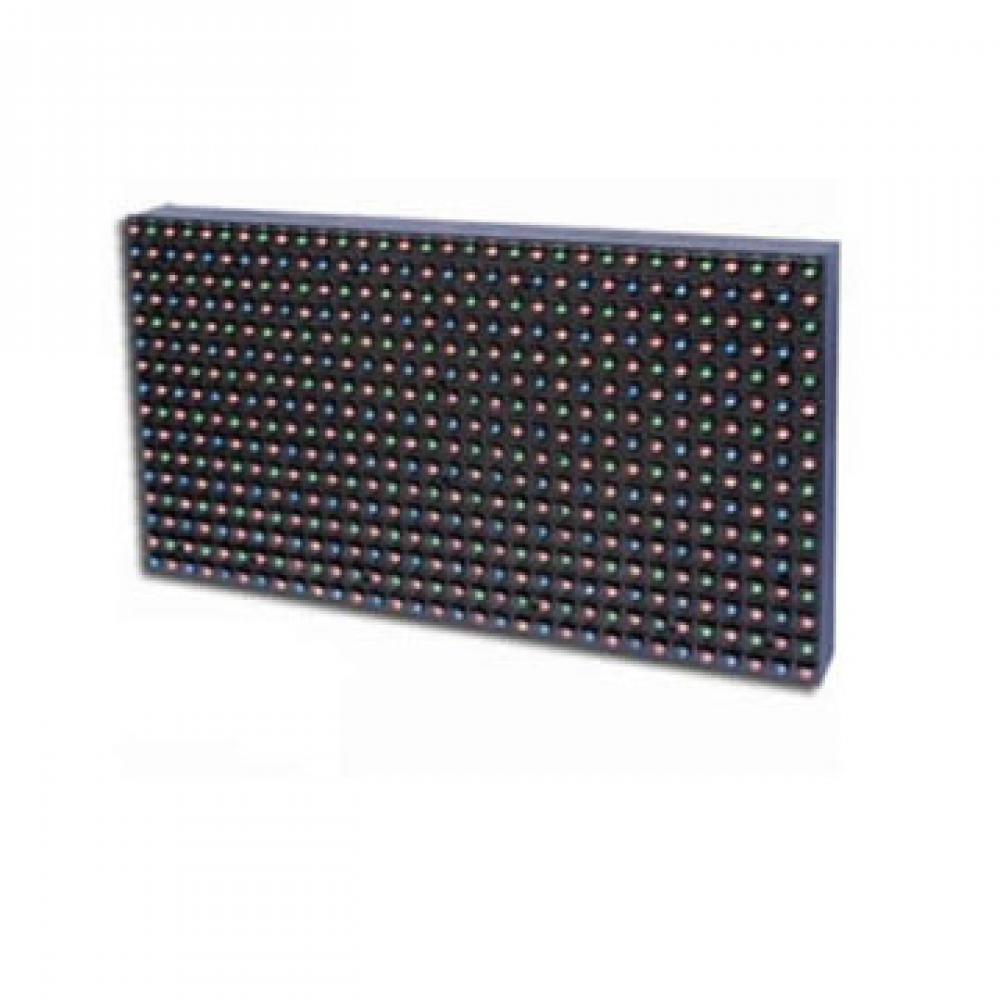

Module Size (W x H) 320 * 160mm
Solving the module: (W x H) 16 * 8pixels
Cabinet Dimension: (LxHxW) 960 * 960 * 150mm / 960 * 640 * 150/1280 * 960 * 150
Cabinet Resolution (WxH) 48 * 48pixels / 48 * 32/64 * 48
Density Brightness: 5000 cd / m2
Display Color: 68700000000
Gray scale 4096 gray levels in each red, green, blue color
Viewing angle: Horizontal angle: 110 degrees; Vertical angle: 60 degrees
User entranement: 1/4
Best Viewing distance: 25m
Average power consumption: 320W / M2
Max power consumption: 800W / M2
Operating Voltage: AC220V 15%, 47 ~ 64Hz
Refresh Velocity ≧ 60 frames / sec
Scuba Review rate: ≧ 300Hz
Effective Control Distance: 100m (Cat5 cable) / 1000m or more (optical fiber)
Between signal: Composite, S-Vido, Component, VGA, DVI, HDMI, SDI, HD_SDI etc.
System of Contrle: PCTV non-linear editting DVI graphics card Controller main transmission optical fiber (optional)
Effective Control Distance: 100m (Cat5 cable) / 1000m or more (optical fiber)
Service life: 100,000 hours
Protection class: Front IP65, IP55 rear
MTBF (Ave faliure No Time): 10,000 hours
Blind pixel rate: 0.0003 ≦
Operating Temperature: - 30 ℃ ~ 60 ℃
Operating humidity: 10% ~ 90% RH

Features:

Best cohrence with between signal, vivid colors
Best angle of 160 horizontal and vertical viewing 120
Contrle centralized management for multi-tooth
≤ the surface of 0.5 mm until a fluid vido
Flexible platform for large area
Ease of transportation, installation and maintenance
On the Economy of energy
High luminous efficiency
The modular design
Quality and perfect stability, 24 * 7 operation
Standard cabinet, easy

Application:

PH20 outdoor is mostly used for outdoor display Adverting and TV show.
