6W 20mm 6 LED COB
- FLM133-6W
- Availability: In Stock
- 6W 20mm 6 LED COB
$70.00

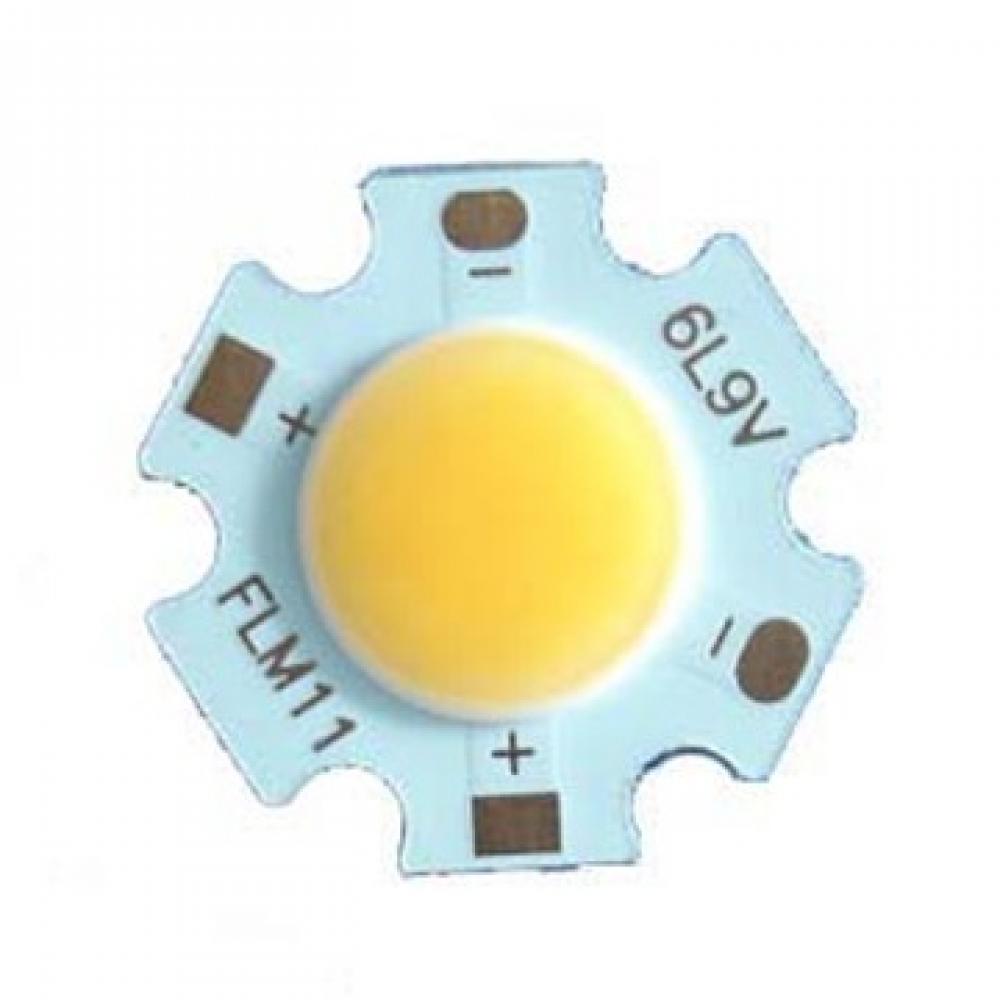

6 Watt 20mm 6 chips COB LED Flat lighting module
Feature:
High brightness
High durability
Excellent efficiency
Optimum performance
Rust proof
Long Life
Low power consumption
Various Viewing angle
Unbreakable
Specification:
LED type: 6 watt 6 chips LED COB
Constant Current: 350mA
Forward voltage: 18-21 VDC
Power Consumption: 6W
Color: Pure White (3000K-3500K)
Natural White (4000K-4500K)
Warm White (6000K-6500K)
Luminous flux: 480-540lm
Electrical/Optical Characteristics at Ta=25℃
Height: 3.2mm
Diameter: 20mm
Emitting Area: 8.5mm
Operating temperature range: -10°C till +45°C
Feature:
High brightness
High durability
Excellent efficiency
Optimum performance
Rust proof
Long Life
Low power consumption
Various Viewing angle
Unbreakable
Specification:
LED type: 6 watt 6 chips LED COB
Constant Current: 350mA
Forward voltage: 18-21 VDC
Power Consumption: 6W
Color: Pure White (3000K-3500K)
Natural White (4000K-4500K)
Warm White (6000K-6500K)
Luminous flux: 480-540lm
Electrical/Optical Characteristics at Ta=25℃
Height: 3.2mm
Diameter: 20mm
Emitting Area: 8.5mm
Operating temperature range: -10°C till +45°C
