200mm Round Ball + 2 Arrow Signal
- JT200-4RYGG
- Availability: In Stock
- 200mm Round Ball + 2 Arrow Signal
$70.00

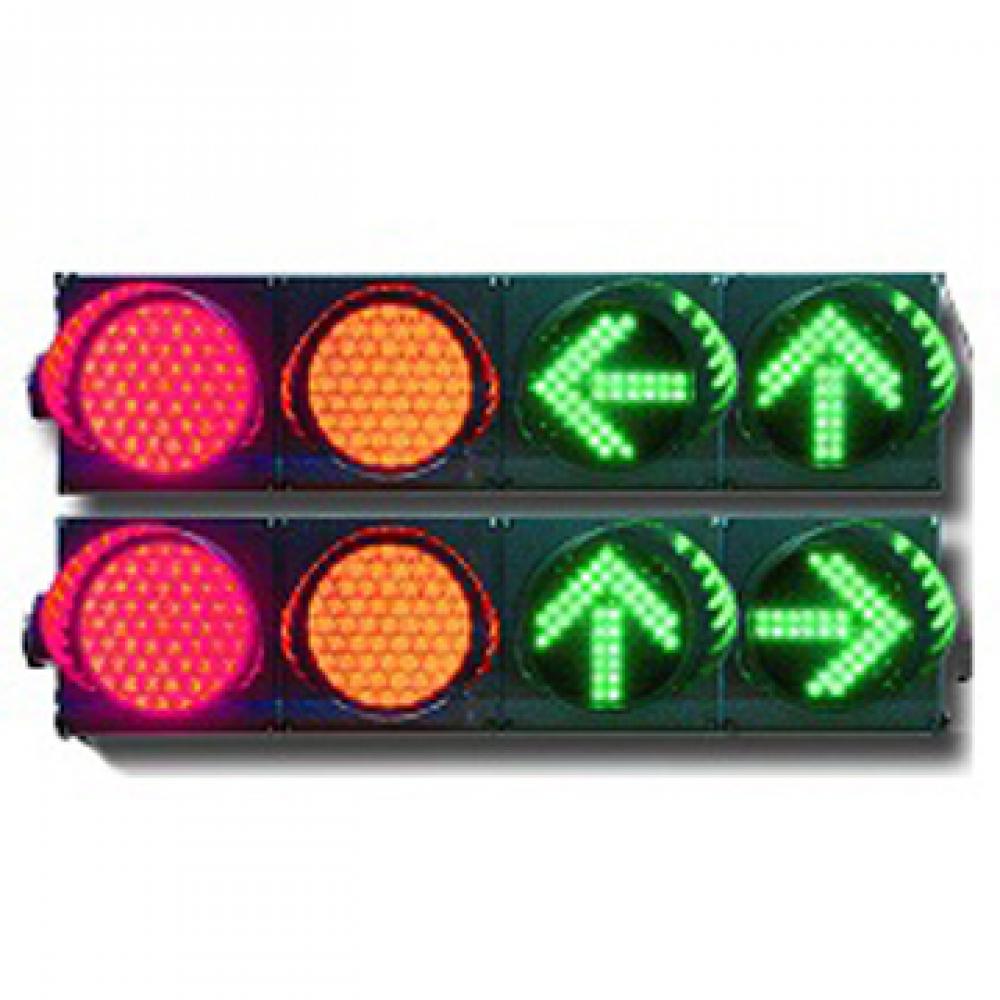

200mm / 8" Red and Yellow Round Ball and 2 Green Arrow Signal LED Traffic Light
Specifications:
Size: 1000mm x 250mm x 210mm
Input Voltage: 85V~264V AC 50Hz/60Hz
Operating Temperature: -40~+80℃
LED quantity:
Red ball: 61 pieces LEDs
Yellow ball: 61 pieces LEDs
Green Arrow(↑): 38 pieces LEDs
Green Arrow(←/→): 38 pieces LEDs
Beam Angle: 60°Right/Left;20°Alow
Wavelength:
Red: 625 ±5nm
Yellow: 590 ±5nm
Green: 505 ±2nm
Power consumption:
Red ball: ≤8W
Yellow ball: ≤8W
Green arrow(↑): ≤7W
Green arrow(←/→): ≤7W
IP rating: IP65
Package Dimension: 1190mm x 315mm x 230mm
Volume (m3): 0.08
Quatity: 1 PCS/Carton
Gross Weight: 13.12 Kg
Features:
Esthetic appearance & visibility
High efficiency and high brightness LED Light source, large view angle
More than 70,000 hours lifespan
90% energy saving compared with incandescent
Unique optical lens, superb color uniformity
Multi-ply sealed, water & dust resistant
Applications:
LED traffic light
LED traffic sign
LED traffic modular
LED traffic ball light
LED pedestrian modular
LED countdown timer
Solar traffic light
Specifications:
Size: 1000mm x 250mm x 210mm
Input Voltage: 85V~264V AC 50Hz/60Hz
Operating Temperature: -40~+80℃
LED quantity:
Red ball: 61 pieces LEDs
Yellow ball: 61 pieces LEDs
Green Arrow(↑): 38 pieces LEDs
Green Arrow(←/→): 38 pieces LEDs
Beam Angle: 60°Right/Left;20°Alow
Wavelength:
Red: 625 ±5nm
Yellow: 590 ±5nm
Green: 505 ±2nm
Power consumption:
Red ball: ≤8W
Yellow ball: ≤8W
Green arrow(↑): ≤7W
Green arrow(←/→): ≤7W
IP rating: IP65
Package Dimension: 1190mm x 315mm x 230mm
Volume (m3): 0.08
Quatity: 1 PCS/Carton
Gross Weight: 13.12 Kg
Features:
Esthetic appearance & visibility
High efficiency and high brightness LED Light source, large view angle
More than 70,000 hours lifespan
90% energy saving compared with incandescent
Unique optical lens, superb color uniformity
Multi-ply sealed, water & dust resistant
Applications:
LED traffic light
LED traffic sign
LED traffic modular
LED traffic ball light
LED pedestrian modular
LED countdown timer
Solar traffic light
